Kimie

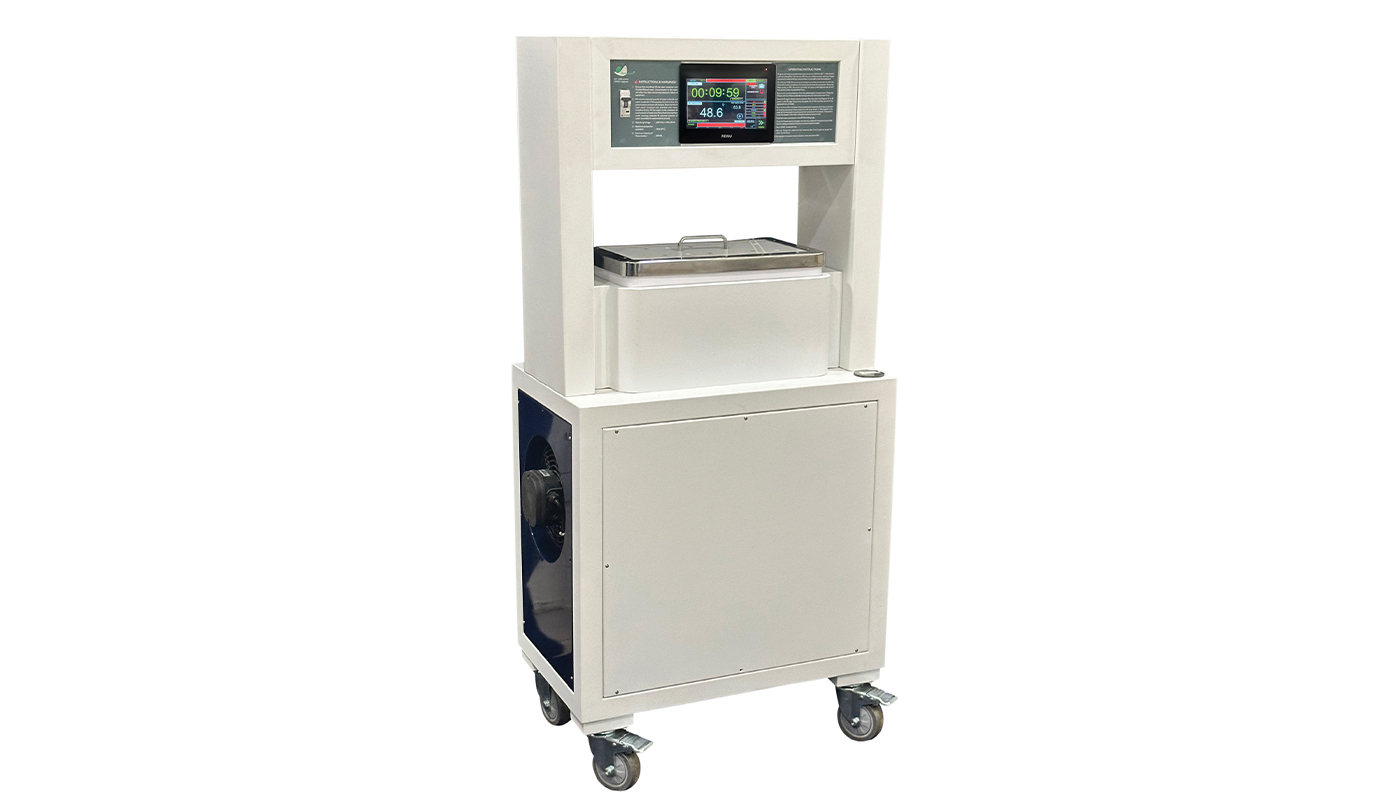

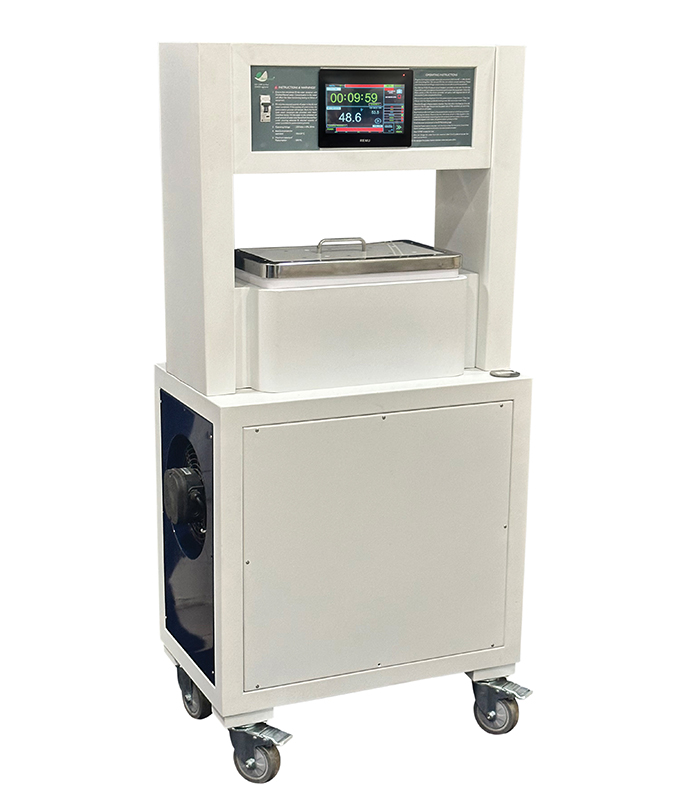

Kimie 500ml

Kimie is A fully Automatic & portable Human Milk Pasteurizer Invented by Shreeyash Electromedicals.

Very handy & portable. Maximum space required is not more than 3 feet. It is mounted on castors for easy mobility.
This Mini Pasteurizer does not require any special Electrical or Plumbing connections. It can work on regular electrical connection. (230 volts +/-10% 50 Hz/110 Volts 60 Hz.)
Very low cost of operation. One Pasteurization cycle will not cost more than 8 cents
Very small volumes of Human milk can be pasteurized which is not possible in available versions. The range varies from 10 ml to 500 ml.
Fully automatic system controlled by intelligent microcontrollers for pinpoint accuracy of the milk temperature. The system is Servo controlled for accuracy & reliability.
Digital display provided that indicates the Elapsed time & actual milk temperature.
Special milk sensor incorporated to ensure accuracy of milk temperature.
The Kimie comprises 3 modes.

A. Heating Mode

B. Hold Mode

C. Cooling Mode

An inbuilt heating system ensures that the Milk is warmed to 62.5 0 C +/- 0.5 0 C.
Once the milk is warmed, the microprocessor will ensure that the Milk Temp will be maintained to 62.5 0 C for 30 minutes. The Digital display will indicate the elapsed time for the user’s convenience.
Inbuilt Cooling system ensures that the milk is rapidly cooled. Once the Hold time is over, the cooling system will automatically take over the cycle & will start rapidly cooling the Milk to 4 0 C +/- 0.5 0 C within 30 minutes.
Inbuilt alarms are provided to inform the user regarding the pasteurization process.
No need for special plumbing or water connections, as required in existing versions.
Meets all world milk Bank Guidelines.

Department of Pediatrics Division of Neonatology and Developmental Biology David Geffen School of Medicine at UCLA

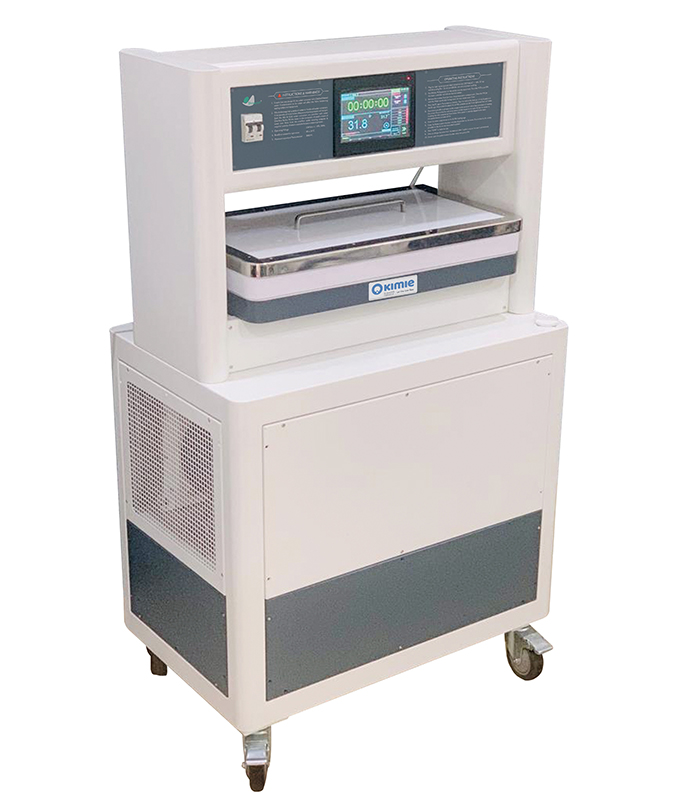

Kimie 3000ml

Kimie SPECIFICATION Of Fully Automatic Human Milk Pasteurizer:

A Human Milk Pasteurizer to pasteurize Expressed Human Milk from 200 ml to 3000 ml.

Kimie comprises an inbuilt heating & Cooling System with a Digital Display of milk temperature & circulating water temperature. It has an Auto drain facility to drain the hot and cold water to their respective reservoir tanks once the pasteurization process is completed. It is Compact & portable & is mounted on 4 Castors, 2 of which are provided with a locking device.
This Automatic Pasteurizer does not require any special plumbing connections. It operates on 230 1No Volts AC +/-10% 50 Hz/110 Volts 0 Htz.
Kimie is a fully automatic Pasteurizer controlled by intelligent microcontrollers for pinpoint accuracy of the milk temperature. The system is Servo Controlled for Accuracy & reliability.
Three digits Digital display is provided that indicate the Elapsed time & actual milk temperature.
A special milk sensor is incorporated to ensure the accuracy of milk temperature.
A separate Water temp sensor is an integral part of the system to control the bath temperature.
The Pasteurization chamber is provided with a stainless-steel cage to hold the milk containers.
The Pasteurization chamber accommodates fourteen milk containers of 250 ml. One sample Water Container is provided to control & maintain the Milk (product) temp.
The Pasteurization chamber is provided with water over flow facility to ensure that the water level in the Pasteurization chamber never exceeds the safety limits & thus does not contaminate the milk.
It has Auto Drain Facility for draining Hot & Cold Water after the respective cycle is completed.
Kimie is Eco friendly. It does not require more than 15 liters of Water & the water can be RE Used for next cycle. It is a close loop system to avoid wastage of water.
Kimie is provided with inbuilt Cooling Facility.
It is provided with following 3 modes.

A. Heating Mode

B. Hold Mode

C. Cooling Mode

It incorporates an inbuilt heating System to ensure that the milk is warmed to 62.5 0 C +/ - 0.5 0 C.
Once the Milk is warmed to 62.4 o C, the Micro processor automatically shifts the mode of the system from Heat To HOLD to ensure that the Milk Temp is maintained to 62.5 0 C +/- 0.5 o C for 30 minutes. The Digital display indicates the elapsed time for the user’s convenience.
It is provided with an Inbuilt Cooling system to ensure that the milk is rapidly cooled to 25 o C within 5 minutes, 10 o C within 10 minutes & 4 o C within 30 minutes. Once the Hold time is over, the cooling system automatically takes over the cycle & starts rapidly cooling the Milk.
Inbuilt alarms are provided to inform the user regarding the pasteurization process.
It indicates the following temperatures: Milk Temp. Pasteurization chamber temp, temp of water.
It Meets the Baum/ Holder Method: - The Scientific method of automatic heating followed by rapid cooling in one chamber.

Kimie 500ml

Kimie 3000ml

Dr. Uday Devaskar demonstrating KIMIE.
